Data Carrier Installation
Section
4-2

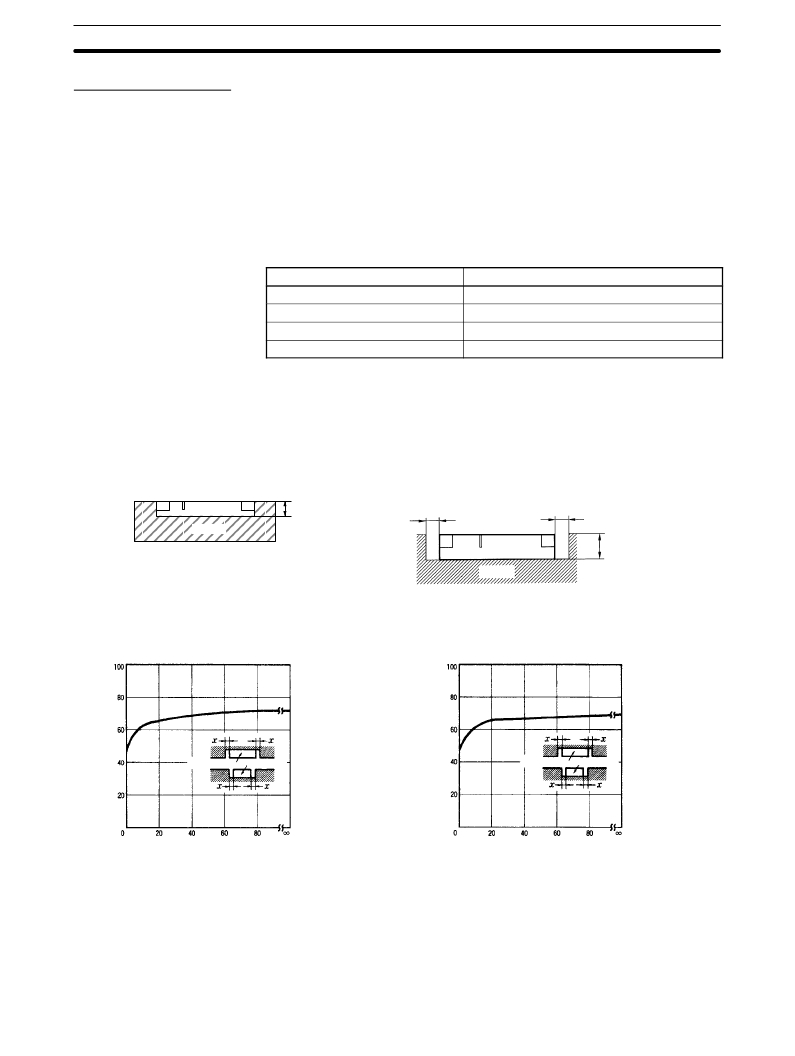

When the V600-D8KR04 is flush-mounted in a metal casing, the transmission
range varies according to the width of the gap ( x ) between the metal and the DC,
as shown in the following graphs.
When Combined With V600-H07
(Shaft slip: ± 0 mm)
When Combined With V600-H11
(Shaft slip: ± 0 mm)
R/W Head
DC
(over 100 mm)
R/W Head
DC
(over 100 mm)
Gap between R/W Head and metal ( x )
Gap between R/W Head and metal ( x )
Effect of Misalignment
The transmission range will be reduced if the R/W Head does not face the DC
directly when data is transmitted. Try to keep any misalignment below 10 ° , as
shown in the following diagram.
Correct
Incorrect
DC
DC
θ
This angle should
not exceed 10 ° .
V600-D2KR16 Data Carriers
Read/Write Head
Read/Write Head
Installation Method
Use a special-purpose holder (purchased separately) for installation. First
secure the holder with flat countersunk-head screws in at least two places, and
tighten the screws to a torque of 0.3 to 0.5 N S m (approximately 3 to 5 kgf S cm).
Then insert the DC into this holder by hand.
Be sure to attach the battery cover seal to the back of the DC. If this seal is not
affixed, the IP protective structure standards will not be satisfied.
(Four, 3.5 dia.)
(Four, 5.5 dia.)
28
